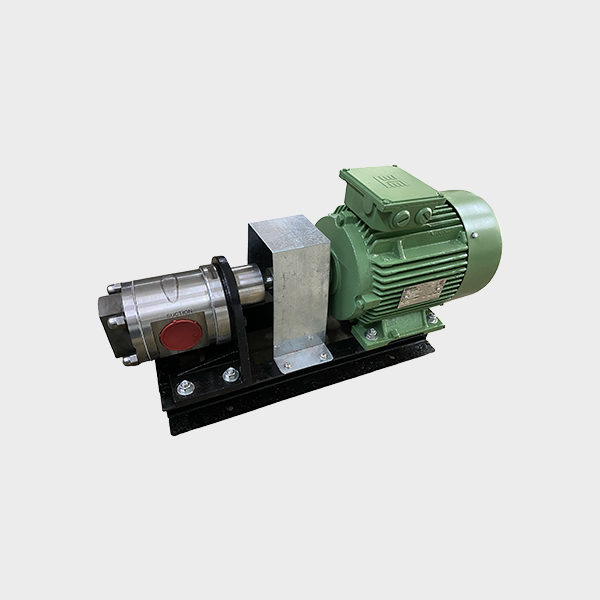

Gear pumps (Series CG CGS)

Available in Nine size; From1/4’ to 3’
Capacity From 5 to 500 LPM
Maximum working pressure 12 kg / cm2
Normal Working Temperature – 90”c
Viscosity up to 10,000 CST
Modified Version For High Temp. Up to 250’C

Special Features

Modified Profile Single Helical Gears Hardened & Ground Shaft Selt Lubricated Sintered Bronze Bush Bearing Effective Built In Pressure Relief Valve.

For Loading Unloading & Transfer of all Viscous & Semi Viscous Liquids, Oils & Petroleum Products.

Foot Mounted General Purpose Rotary Gear Pump in Simple Two Piece Construction With Single Helical Modified Profile alloy Steel Gears Fitted on Hardened Ground Shafts as Rotes Support on Either Side by four Nos. of self lubricated bronze bush bearing with inbuilt pressure relief valve.

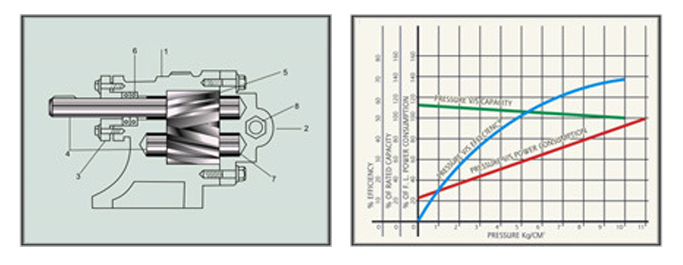

Power Chat

PUMP MODEL	INLET OUTLET SIZE	CAPACITY AT 1440 RPM			WEIGHT OF BARE SHAFT PUMP IN KG
PUMP MODEL	INLET OUTLET SIZE	LPM	USGPM	M3/hr	WEIGHT OF BARE SHAFT PUMP IN KG
CG-025	¼ “ X ¼”	5	1.3	0.3	1.40
CG-050	½ “ X ½”	20	5.3	1.2	2.20
CG-075	¾” X ¾ ”	30	7.92	1.8	4.30
CG-100	1“ X 1”	50	13.2	3.0	5.20
CG-125	1 ¼ “ X 1 ¼”	75	19.8	4.5	8.30
CG-150	1 ½ “ X1 ½ ”	110	29	6.6	9.80
CG-200	2” X 2”	225	59.4	13.5	17.5
CG-250	2 ½ “ X 2½ ”	350	39.5	21.0	35.4
CG-300	3 “ X 3”	500	131.3	30	54.0

Material of Construction

Sr. No.	PART	MOC
1	Casing	CI GR. 20
2	R.V Cover	CI GR. 20
3	Gland Cover	CI GR. 20
4	Shafts	EN -9 H&G
5	Gears	EN -9
6	Sealing	Oil Seal
7	Bearing	Bronze Bush
8	Plug	Brass

Dimension

Pump Model	A	B	E	F	G	S	T	H	H1	H2	H3	L	M	N	QD	QD1	K	PQ
CG-025	118	21.5	22	35	60	78	60	54	43	78	6	18	4	11	9.5	7	60	1/4"BSP
CG-050	156	38	51	40	70	90	70	63	50	90	6	22	4	13.5	12	8	70	1/2"BSP
CG-75	193	44.5	63.5	45	85	110	95	80	66	115	8	25	5	16	14	10	80	3/4"BSP
CG-100	203	55	64.5	50	93	120	110	90	73	128	8	27	5	19	17	10	90	1/4"BSP
CG-125	240	60	65	60	105	140	130	100	79	140	10	32	6	22.5	20	12	100	1"BSP
CG-150	262	65	80	70	115	150	160	110	88	155	12	35	6	24.5	22	12	108	2"BSP
CG-200	322	84	92	100	140	180	160	132	105	192	15	40	8	28	25	15	142	3"BSP
CG-250	384	97	110	120	155	200	185	145	114	215	16	45	8	31	28	17	160	11/4"BSP
CG-300	437	108	120	140	180	235	205	160	120	235	20	50	8	33	30	17	170	11/2"BSP

Application

ROPAR’ Rotary gear pumps are useful for handling viscous liquid i.e. all kind for oils viscous chemicals and food application, following liquid can be handle with them. All kind of mineral oils, All kind of vegetable oils, Coal tar Bitumen Asphalt Paint & Varnish Sugar Molasses & syrups Printing inks & Dyes All kind of fish & animal oila Glycerine & Glycol Fuel oil Diesel oil Soap solutions & Lard Viscous chemicals.

Rotery Gear pumps finds wide application in Power plant Steel mills Potteries Refineries Oil storage installations etc
