Vertical Centrifugal Pumps (Series PTV & STV)
Provide reliable Circulation and fluid transfer of various liquids
The PTV & STV are vertical, Seal less centrifugal pumps made from PP, PVDF or AISI 316 Stainless Steel.
The PTV & STV series are single – stage pumps with the pump casing directly submerged in the liquid. It is driven by an asynchronous electric motor. They are successfully used in various applications in today’s industries.

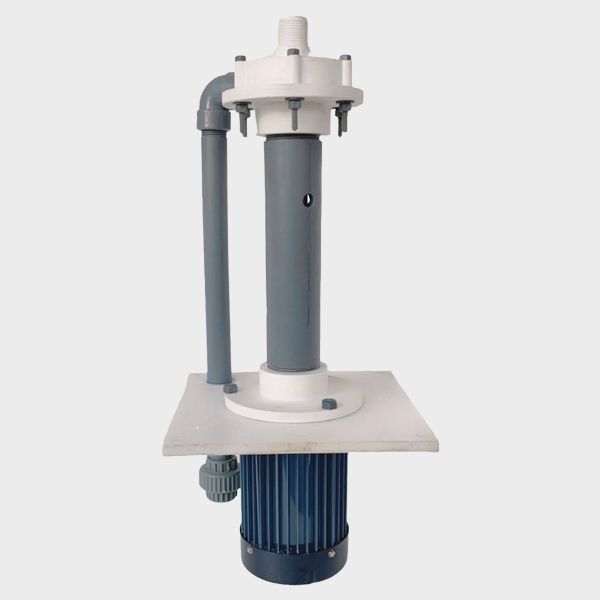

PTV – PP – Plasc exceuon (PP or PVDF)
- Impeller with high back vanes to avoid Liquid from reaching the motor.
- Motor shaft sleeve in PP or PVDF to avoid any metal in contact with the liquid.

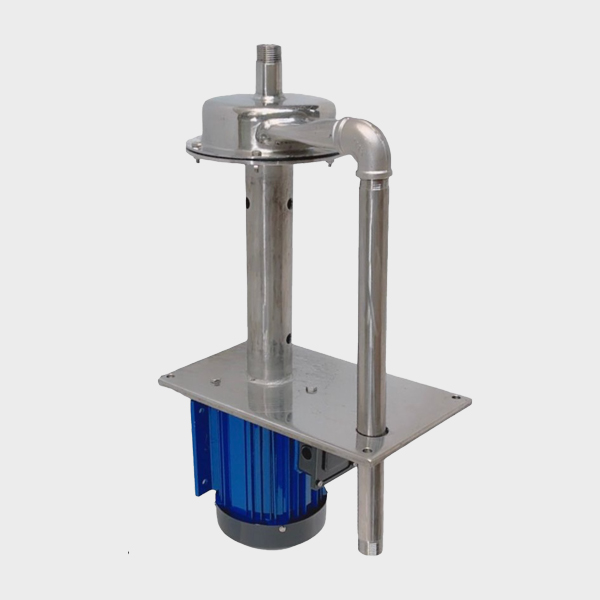

STV-SS-Stainless Steel Execuon ( SS316)
- Open Impeller for good solid handling
- All wetted metal components made of corrosion resistant SS316
Feature
- Leakage free
- Low Maintenance Cost
- Replacing Self-Priming Pumps
- Handling Liquids with particles Possible up to 3mm
- Easy Installation
- Space Saving
Wide Range of Application
- Chemical
- Surface Treatment
- Machinery
- Foundry
- Paint
- Waste Water Treatment Plants
PTV PP Plastic Series
| Casing | PP Or PVDF |
| Impeller | PP Or PVDF |
| Casing O Ring | Viton |
| Motor | 1 or 3 Phase, 2 Pole, IP55, AC 50hz |
| Temperature | PP : Max 70° C PVDF : Max 100° C |
| Submerged Length | Up to 400mm |
Pump Data
| Model | HP | Inlet X outlet Threading | Max Flow LPM | Max Flow M3/hr | Head Meters | Phase |
| PTV 50 | 0.5 | 1” X 1” BSP | 85 | 5 | 9 | 1/3 |
| PTV 100 | 1 | 1” X 1” BSP | 170 | 10 | 14 | 1/3 |
| PTV 150 | 1.5 | 11/2” X 11/2” | 250 | 15 | 18 | 3 |
| PTV 200 | 2 | 11/2” X 11/2” | 300 | 18 | 20 | 3 |
| PTV 300 | 3 | 2” X 11/2” | 420 | 25 | 27 | 3 |
| PTV 500 | 5 | 2” X 11/2” | 510 | 30 | 30 | 3 |

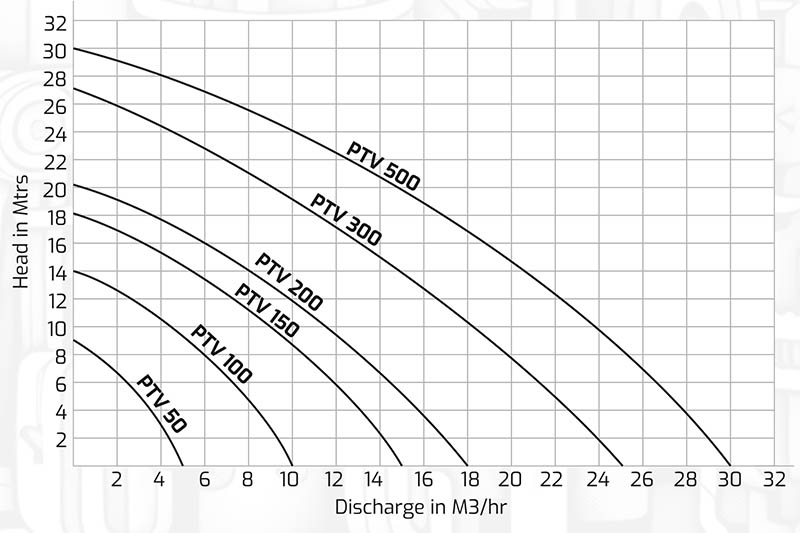

Performance Curved Base on water, 2900 rpm, AC 50hz, Ambient Temp
STV SS Stainless Steel Series
| Casing | SS 316 |
| Impeller | SS 316 |
| Casing O-Ring | Viton |
| Motor | 1 Or 3 Phase, 2 Pole, IP55, AC50 hz |
| Temperature | Max 100°C |
| Submerged Length | Up to 400mm |
Pump Data
| Model | HP | Inlet X Outlet Threading | Max Flow LPM | Max Flow M3 / hr | Head Meters | Phase |
| STV 50 | 0.5 | 1” X 1” | 100 | 6 | 12 | Single / Three |
| STV 50A | 0.5 | 1.5” X 1.5” | 200 | 12 | 10 | Single / Three |
| STV 100 | 1 | 1” X 1” | 170 | 10.2 | 20 | Single / Three |
| STV 100A | 1 | 1.5” X 1.5” | 230 | 13.8 | 16 | Single / Three |
| STV 150 | 1.5 | 1.5” X 1.5” | 250 | 15 | 22 | Three |
| STV 150A | 1.5 | 2” X 1.5” | 300 | 18 | 20 | Three |
| STV 200 | 2 | 2” X 1.5” | 250 | 16.2 | 24 | Three |
| STV 200A | 2 | 2.5” X 2” | 325 | 19.5 | 20 | Three |
| STV 300 | 3 | 2” X 1.5” | 300 | 19.2 | 30 | Three |
| STV 300A | 3 | 2.5” X 1.5” | 398 | 24 | 24 | Three |
| STV 500 | 5 | 2” X 1.5” | 300 | 19.5 | 36 | Three |
| STV 500A | 5 | 2.5” X 2” | 450 | 27 | 30 | Three |

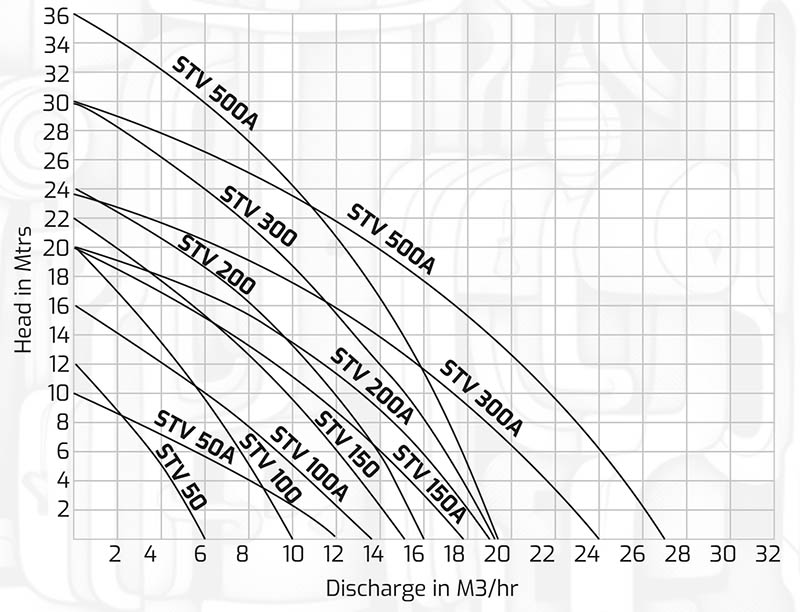

Performance Curved Base on water, 2900 rpm, AC 50hz, Ambient Temp
| Model | A | B | C | D | E | F | G | H | I | J | H | Weight |
| BSP Thread | ||||||||||||
| PTV 50 | 1” | 1” | 410 | 128 | 580 | 205 | 270 | 270 | 240 | 240 | 12 | 11 KGS |
| PTV 100 | 1” | 1” | 410 | 130 | 580 | 225 | 270 | 270 | 240 | 240 | 12 | 14 KGS |
| PTV 150 | 1.5” | 1.5” | 410 | 152 | 580 | 262 | 270 | 370 | 240 | 340 | 14 | 17 KGS |
| PTV 200 | 1.5” | 1.5” | 410 | 152 | 580 | 269 | 270 | 370 | 240 | 340 | 14 | 24 KGS |
| PTV 300 | 2” | 1.5” | 410 | 164 | 580 | 294 | 270 | 380 | 240 | 350 | 16 | 29 KGS |
| PTV 500 | 2” | 1.5” | 410 | 164 | 580 | 314 | 270 | 380 | 240 | 350 | 16 | 38 KGS |
| Model | A | B | C | D | E | F | G | H | I | J | H | Weight |
| BSP Thread | ||||||||||||
| PTV 50 | 1” | 1” | 410 | 128 | 580 | 205 | 270 | 270 | 240 | 240 | 12 | 17 KGS |
| PTV 50A | 1.5” | 1.5” | 410 | 128 | 580 | 205 | 270 | 270 | 240 | 240 | 12 | 18 KGS |
| PTV 100 | 1” | 1” | 410 | 130 | 580 | 225 | 270 | 270 | 240 | 240 | 12 | 24 KGS |
| PTV 100A | 1.5” | 1.5” | 410 | 130 | 580 | 225 | 270 | 270 | 240 | 240 | 12 | 25 KGS |
| PTV 150 | 1.5” | 1.5” | 410 | 152 | 580 | 262 | 270 | 370 | 240 | 340 | 14 | 29 KGS |
| PTV 150A | 2” | 1.5” | 410 | 152 | 580 | 262 | 270 | 370 | 240 | 340 | 14 | 30 KGS |
| PTV 200 | 2” | 1.5” | 410 | 152 | 580 | 269 | 270 | 370 | 240 | 340 | 14 | 36 KGS |
| PTV 200A | 2.5” | 2” | 410 | 152 | 580 | 269 | 270 | 370 | 240 | 340 | 14 | 38 KGS |
| PTV 300 | 2” | 1.5” | 410 | 164 | 580 | 294 | 270 | 380 | 240 | 350 | 16 | 42 KGS |
| PTV 300A | 2.5” | 2” | 410 | 164 | 580 | 294 | 270 | 380 | 240 | 350 | 16 | 45 KGS |
| PTV 500 | 2” | 1.5” | 410 | 164 | 580 | 314 | 270 | 380 | 240 | 350 | 16 | 45 KGS |
| PTV 500A | 2.5” | 2” | 410 | 164 | 580 | 314 | 270 | 380 | 240 | 350 | 16 | 48 KGS |
