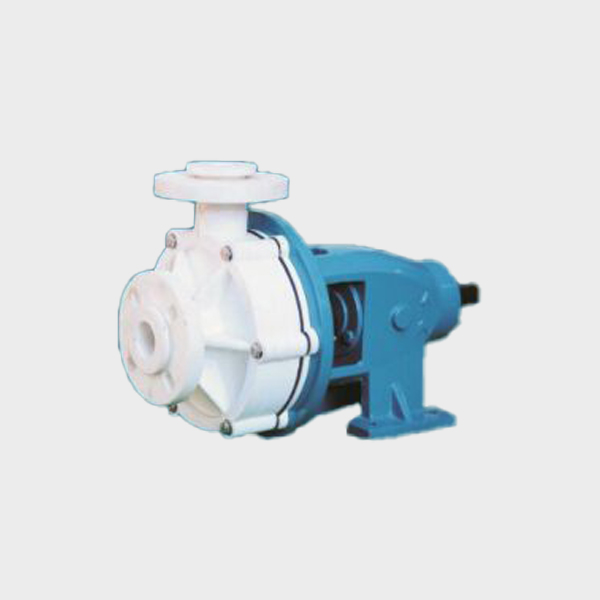

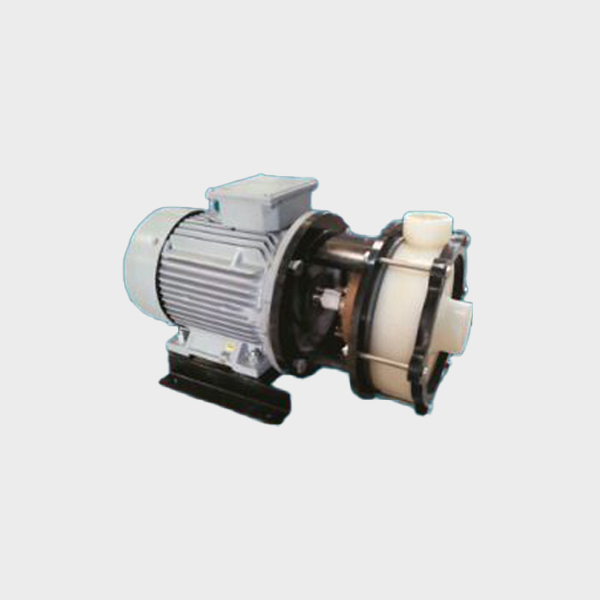

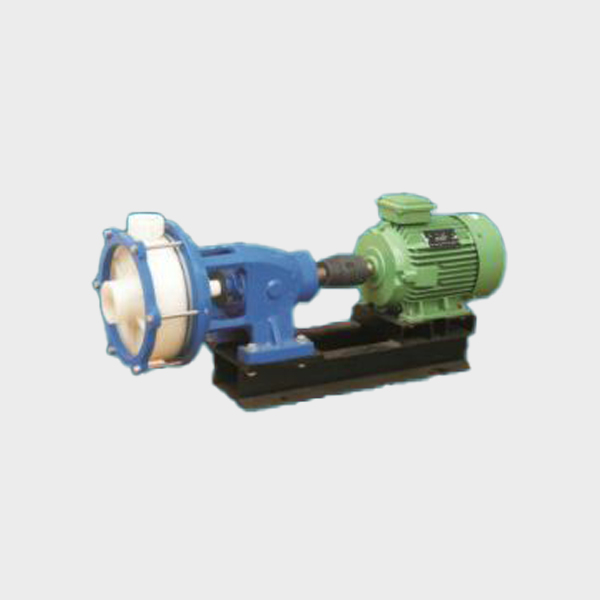

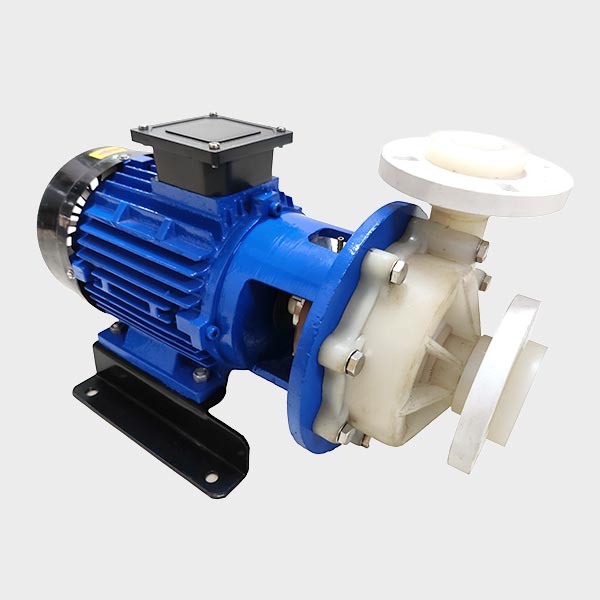

PVDF Centrifugal Pumps (Series PVX)
Most suitable pumps for use in highly corrosive and toxic liquids such as sulfuric acid (up to 98%F Nitric Acid, Chrome liquid, Fluorides, Cyndie, Toluene, Petroleum Product and many more liquids.
Feature
PVX Series pumps are solid moulded form virgin raw material hence give better life and performance than line pumps. Each pumps are tested for its performance and workmanship before delivery to customer for optimum reliability. All parts are standardized and can be easily replaced during pump services life.
Range
| Model | HP | In / Out Side | Head in Mtrs | ||||||||
| 4 | 6 | 8 | 10 | 12 | 13 | 15 | 17 | 18 | |||
| PVX 100 | 1 | 25 X 25 | 12 | 11 | 9 | 6 | 3 | 0 | |||
| PVX 120 | 2 | 40 X 40 | Capacity in M3 / hr | ||||||||
| 26 | 24 | 22 | 20 | 17 | 15 | 10 | 4 | 0 | |||
Bath Performance @ 2900 RPM
| Model | HP | In / Out Size | 5 | 10 | 12 | 15 | 18 | 20 | 25 | 27 | 31 |
| PVX 130 | 3 | 50 X 40 | 28 | 25 | 22 | 20 | 17 | 12 | 5 | 0 | |
| PVX 160 | 5 | 50 X 40 | 40 | 35 | 37 | 33 | 28 | 24 | 16 | 10 | 0 |
Material OF Construction Chart
- Volute Casing, Back Plate
- Impeller
- Shaft
- Shaft Sleeve
- Sealing
- Bearing bracket
- Casing Gasket
- Melded PVDF
- Moulded PVDF
- EN 8 / SS 304 / SS 316
- Alumina Ceramic 99.5% / Hast Alloy
- Mechanical Seal GFT v/s Ceramic
- OR SIC v/s Ceramic
- Teflon glad Packing
- Cast Iron
- Viton Rubber
